Marlin Lever-Action Rimfire

Click here for more information on identifying Marlin Lever-Action RF parts

Total Views: 82716 ,

Parts available for this firearm

Model Part Number Part Name Price Photo

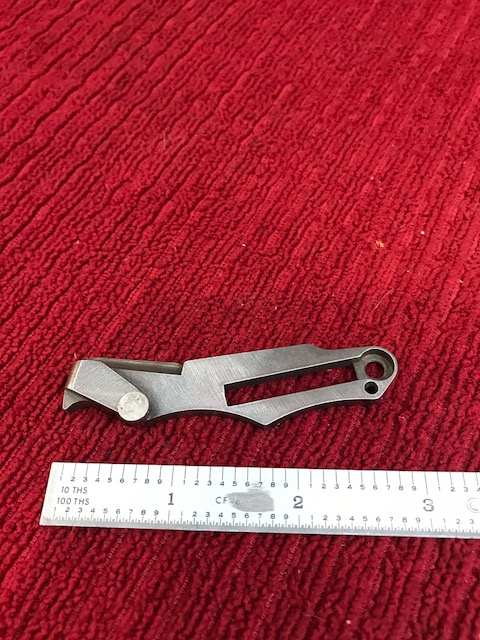

39, 39A, 97, 39A-6 Carrier 55.00
1891, 1892, 91, 92, 7G-22 Carrier – 22RF, mid 1892, 92, early 1897 out

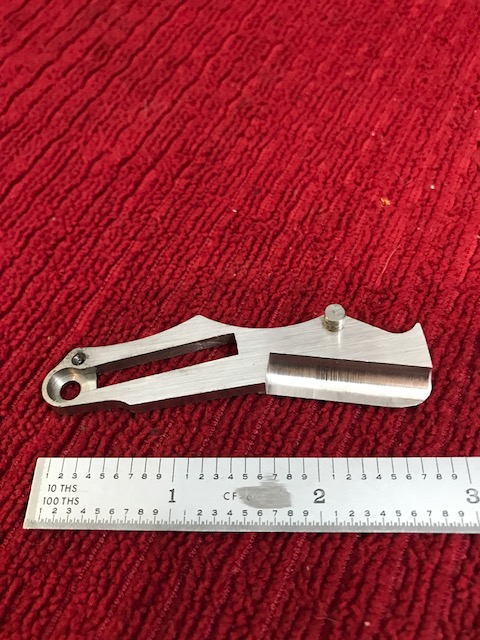

1891, 1892, 91, 92, 7G-32 Carrier – 32 Caliber out

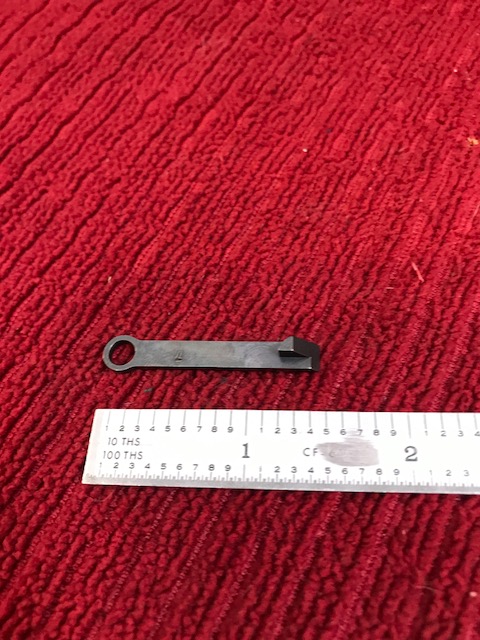

39, 39A, 97, 7F Carrier Rocker 15.00

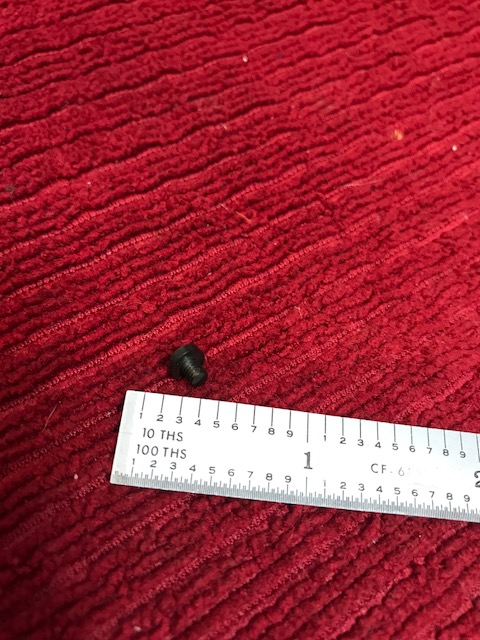

1891, 1892, 39, 39A, 91, 92, 97, 10G Carrier Rocker Screw 4.00

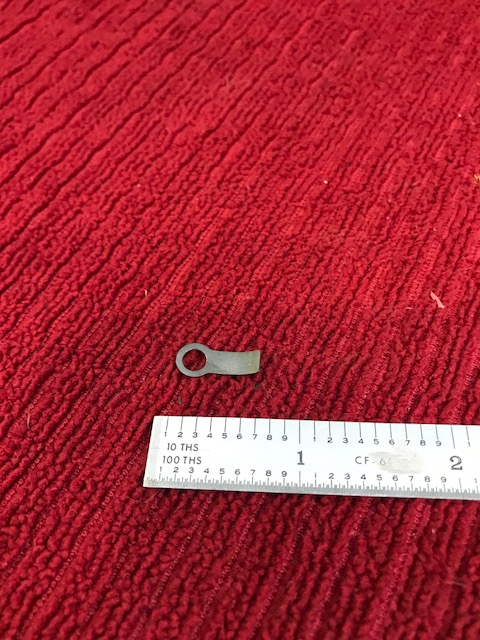

1891, 1892, 39, 39A, 91, 92, 97, 9G Carrier Rocker Spring 6.00

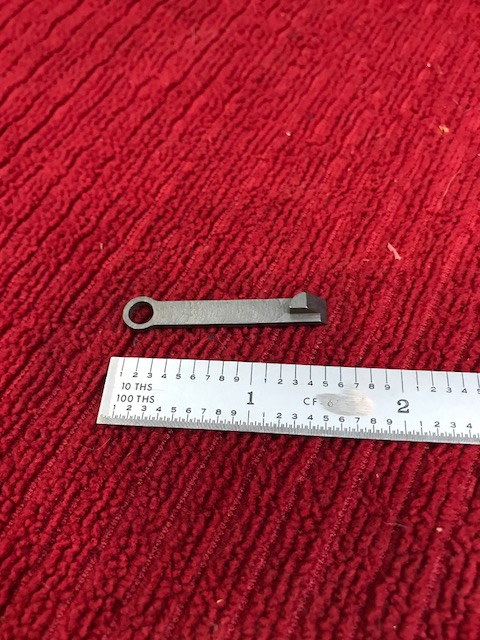

1891, 1892, 91, 92, 8G-22 Carrier Rocker, 22RF 15.00

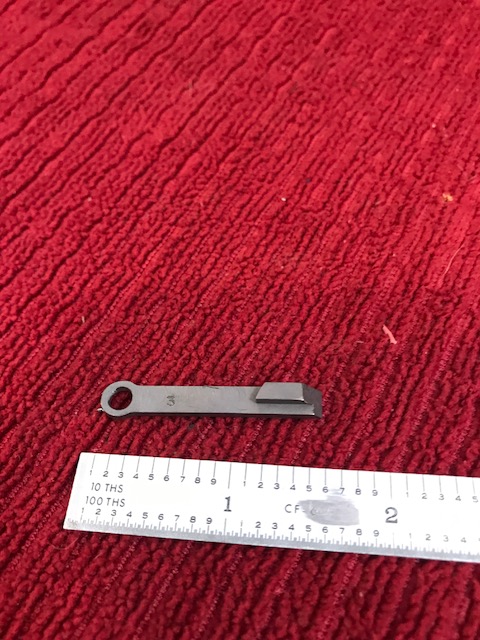

1891, 1892, 91, 92, 8G-32 Carrier Rocker, 32 RF 15.00

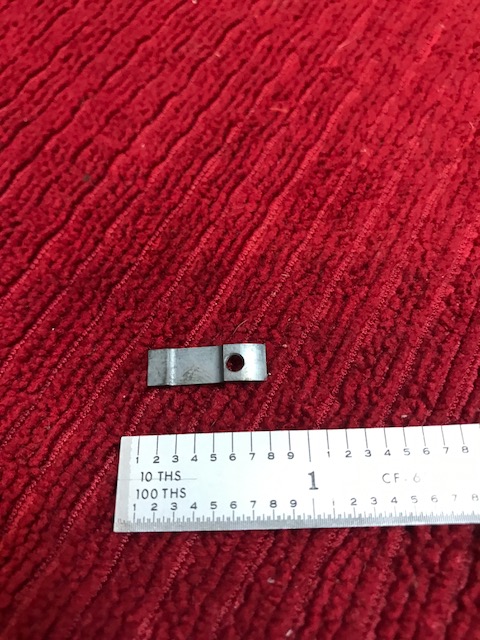

1892, 92, 97, 11F Cartridge Guide Spring 15.00

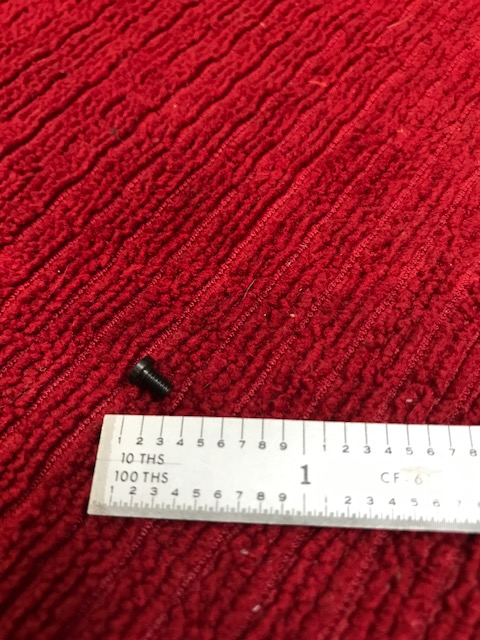

1892, 92, 97, 12F Cartridge Guide Spring Screw 4.00
1891, 1892, 91, 92-(22RF), 10G Cartridge Stop Screw – (22RF only) for the flat formed stop 4.00

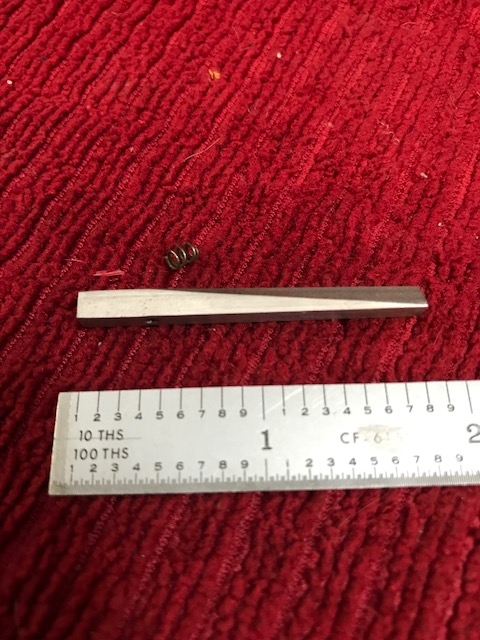

39A, A39A-18/19 Cartridge Stop, bar type with coil spring OUT

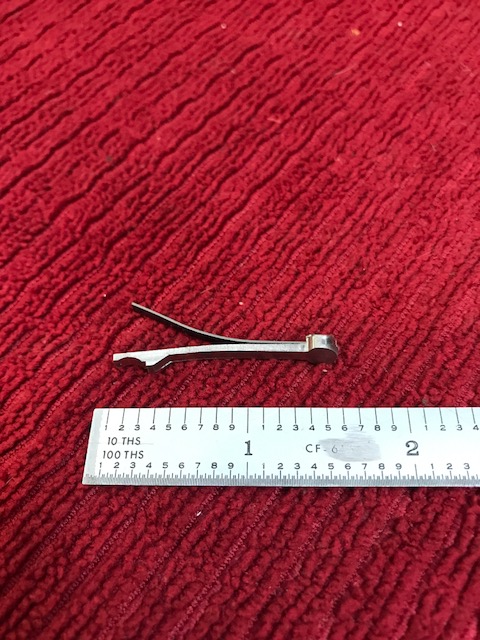

1891, 1892, 1897, 92, 97, 18G Ejector Assembly, 22, old style .105 wide with spring 22.00

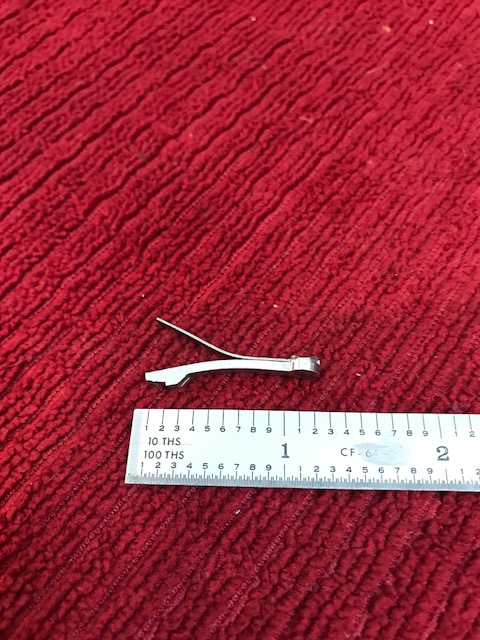

1891, 1892, 92, 17G Ejector Assembly, 32, old style .094 wide with spring out

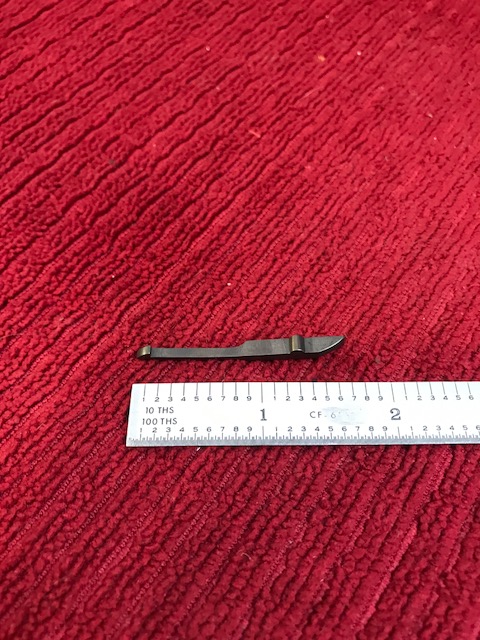

1891, 1892, 1897, 91, 92, 97, 25G Extractor – 22 out

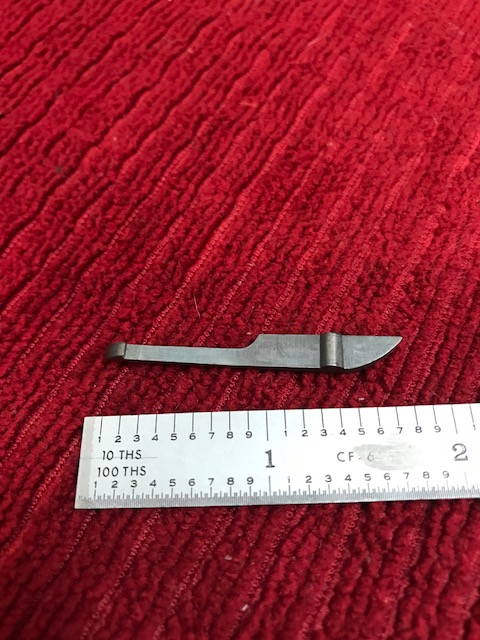

1892, 92, 11 Extractor – 32 23.00

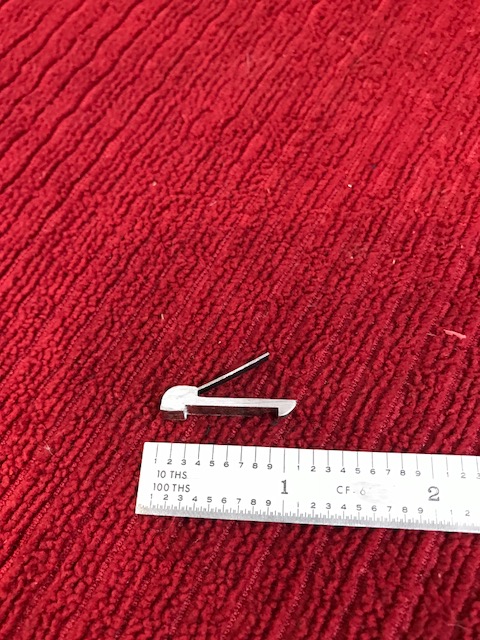

39, 39A type 1, 39A-26/27 Extractor Assembly, old style with angled flat spring 23.00

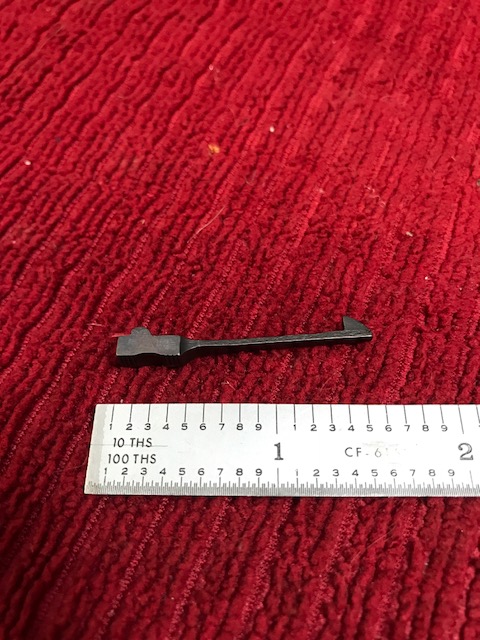

39A type 2, A39A-27 Extractor, new style machined, type 2 23.00
1891, 1892, 39, 39A, 91, 92, 97, 28G Finger Lever Spring out
Photo not available

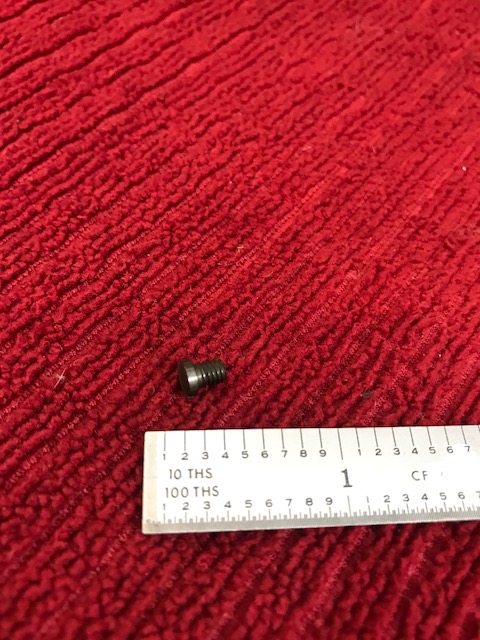

1891, 1892, 39, 39A, 91, 92, 97, 29G Finger Lever Spring Screw 4.00

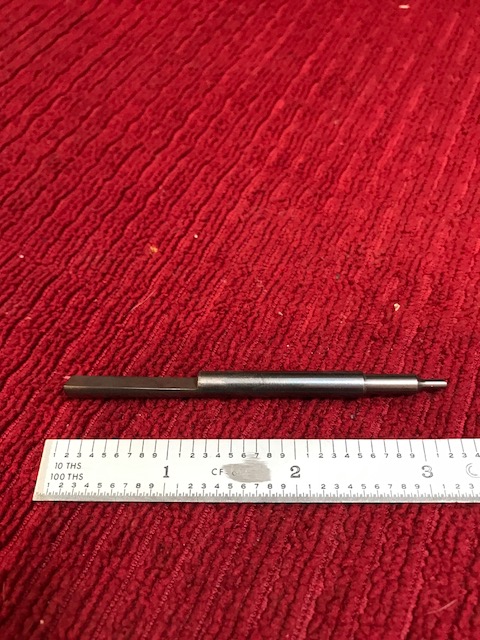

56, 57, A57-28 Firing Pin OUT

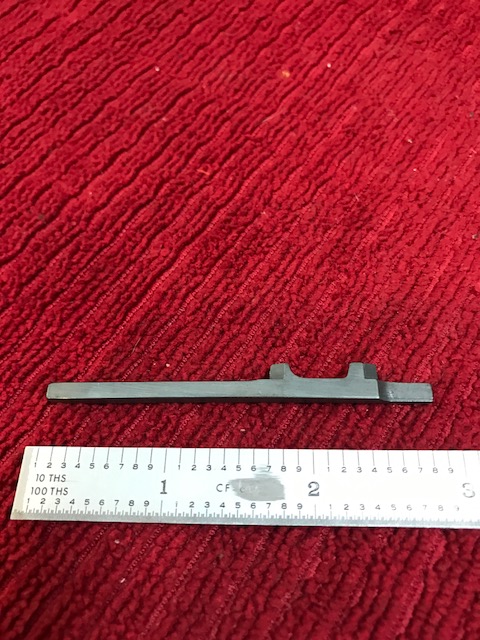

1891, 14RF-22 Firing Pin – 22 22.00
1892 - early, 31G Firing Pin – 22 out
Photo not available

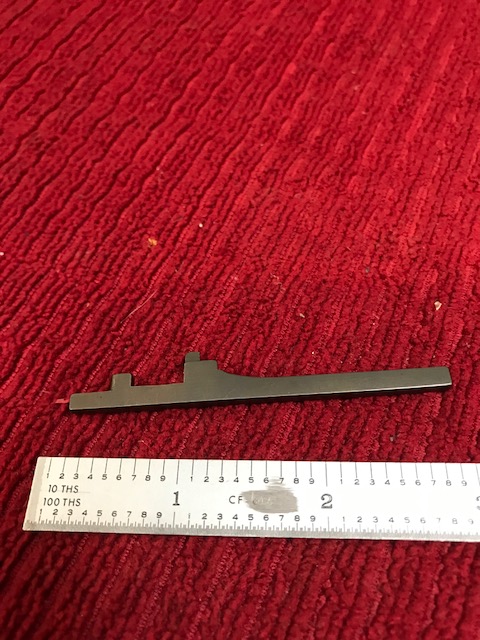

1892, 1897, 39, 39A, 92, 97, A39A-32 Firing Pin – 22 OUT

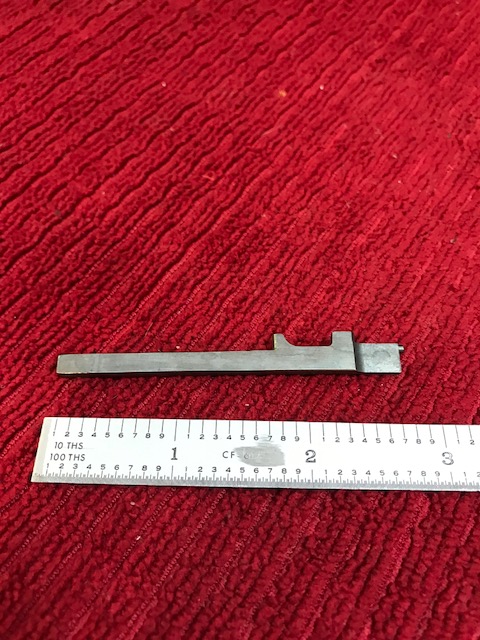

1891, 14CF-32 Firing Pin – 32CF 25.00
1892, 92, 33G Firing Pin – 32CF OUT
Photo not available

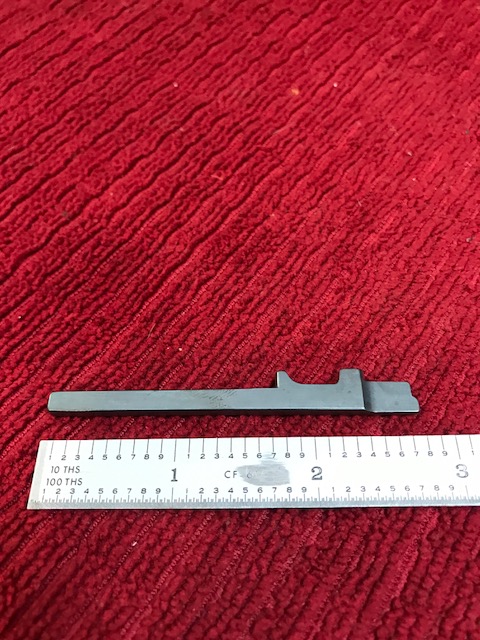

1891, 14RF-32 Firing Pin – 32RF 22.00

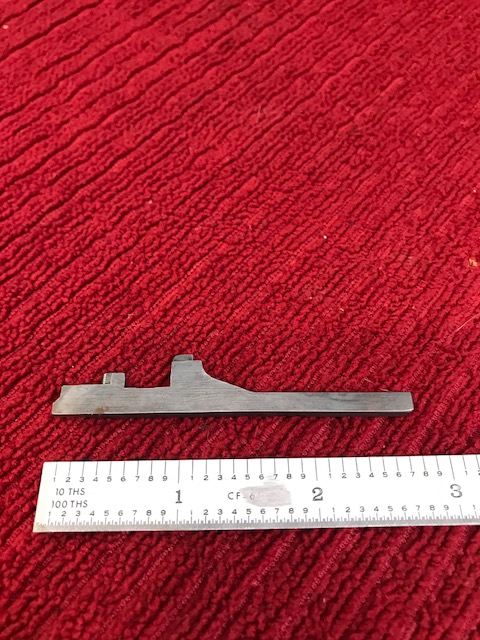

1892, 92, 32G Firing Pin – 32RF 23.00
1891 - early, 10G Loading Gate Screw – (early side loader style) 4.00
1891, 1892, 39, 91, 92, 97, 39-49 / 50 Magazine Tube Asy, 22-Replacement-inner & out, w/band 70.00
Photo not available
1891, 1892, 1897, 91, 92, 97, 39A-61 Mainspring – (old style 1/2 PG) 34.00
Photo not available
1891, 1892, 1897, 91, 92, 97, 57G Mainspring – (straight grip) 32.00
Photo not available

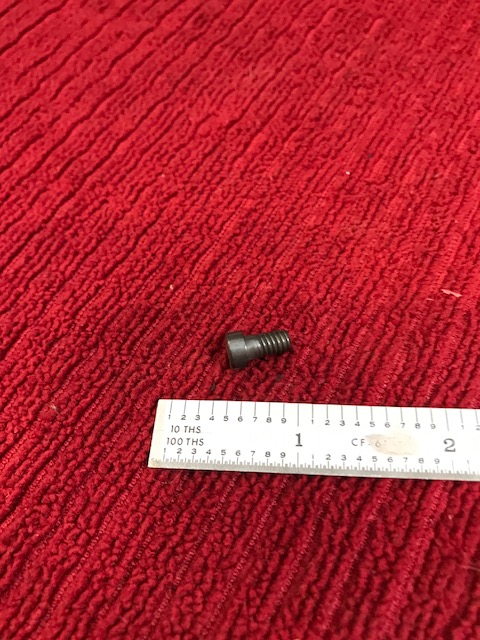

1891, 1892, 1897, 91, 92, 97, 58G Mainspring Screw 4.00

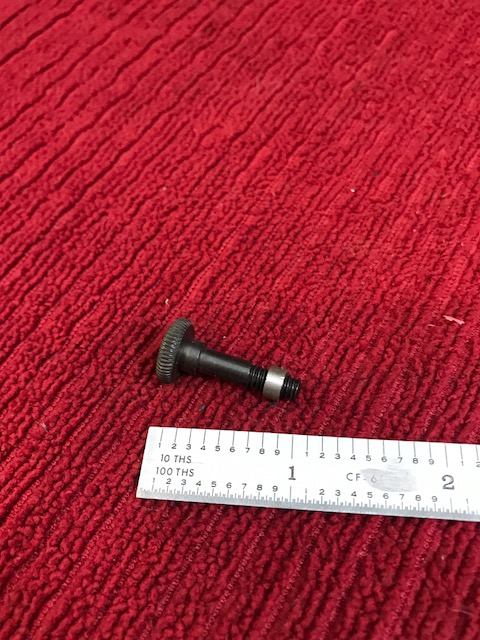

1891, 1892, 91, 92, 62G Side Plate Screw with nut 20.00
1892, 92, 97, 68F Tang Screw – (pistol grip) out
Photo not available

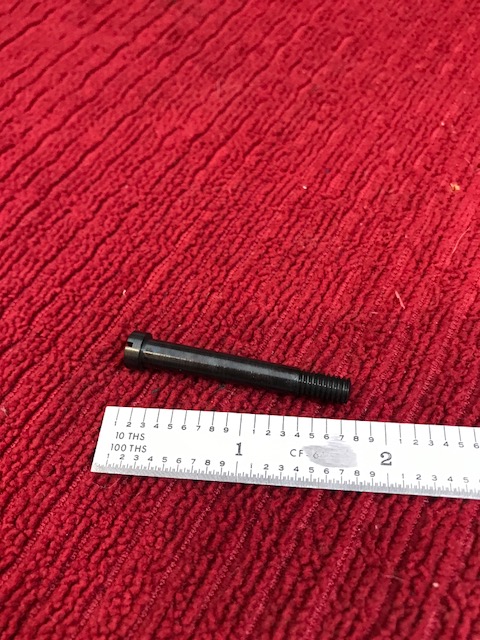

1892, 92, 97, 64G Tang Screw – (straight grip) 5.00
Back to Catalog
